FS-750H-2X1

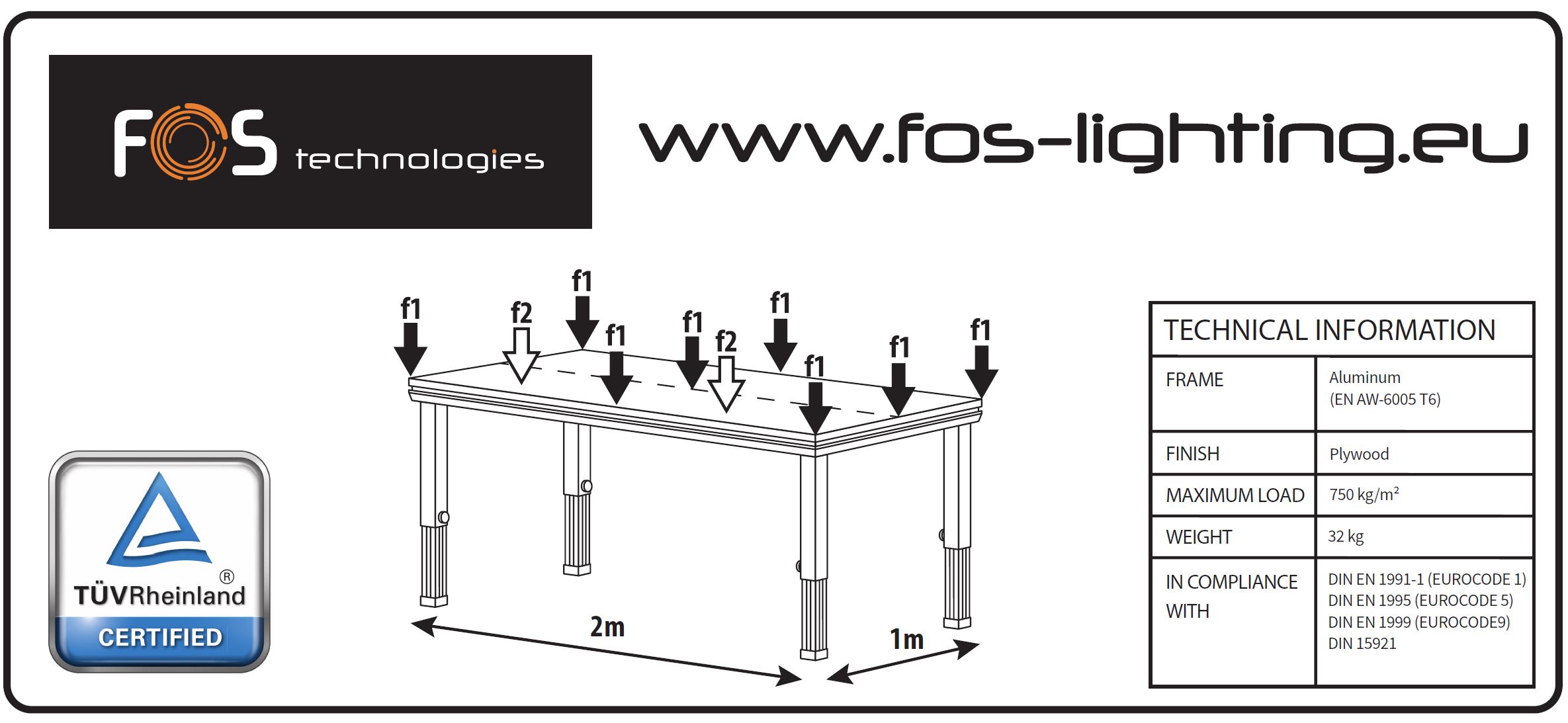

CAPACITY
Loading according DIN 15921
Vertical: q=750kg/m²
Horizontal: q/20

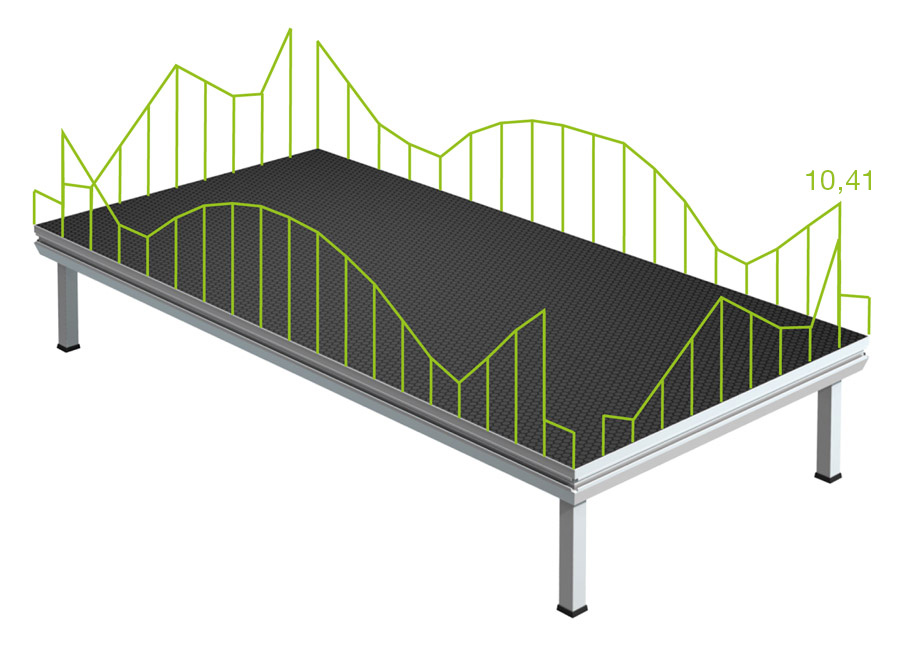

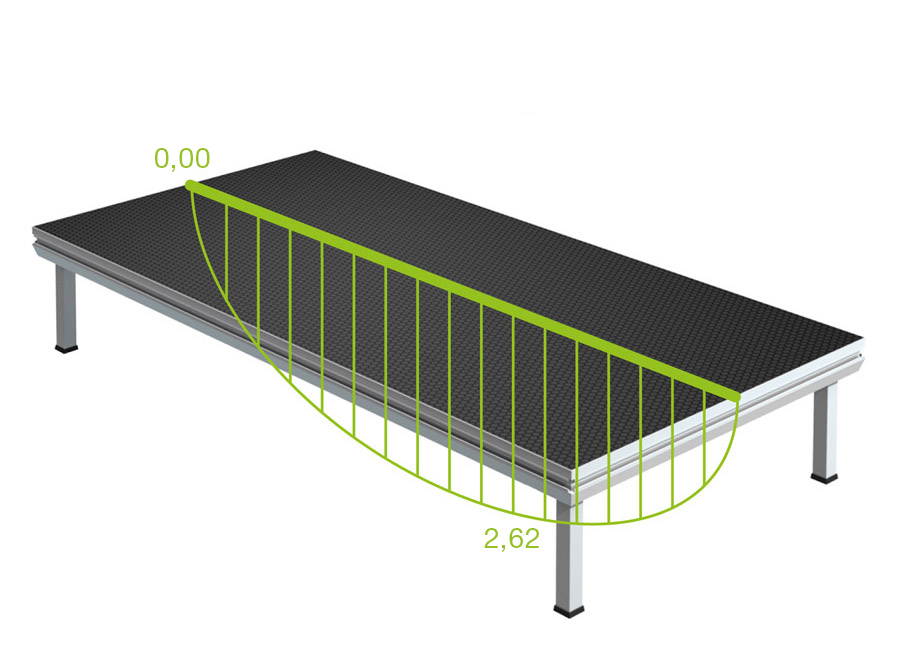

MINIMUM DEFLECTION
2 times lower deflection

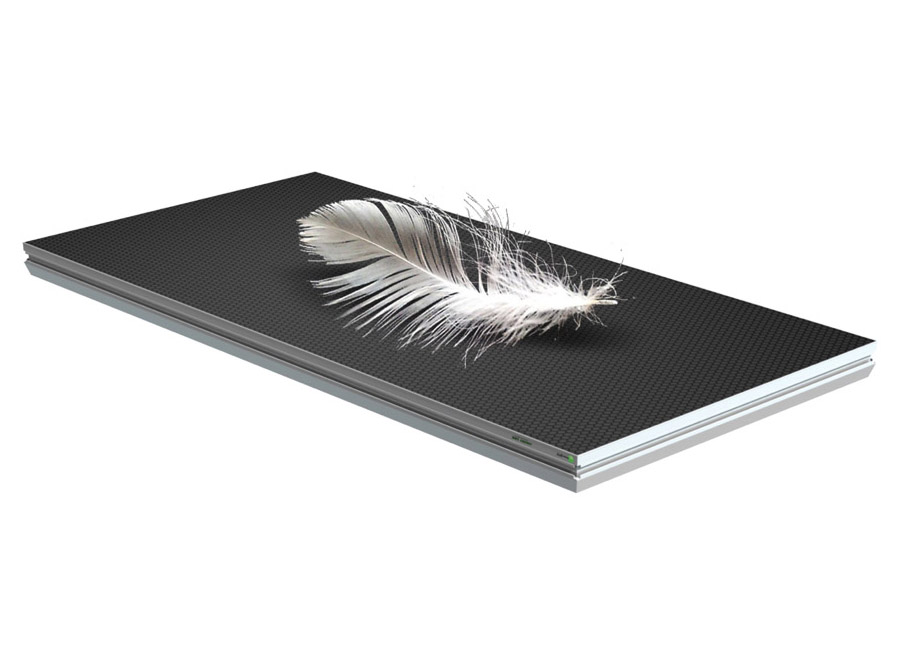

Only 32kg for 2x1m deck
Compatible profile

Compatibility – with other leading brands.
Everdeck gives you full flexibility!
Shape improvement – angle on the outside
compatible with scaffold beam without
using any special adaptors.
Low storage costs – only 9cm stacking height

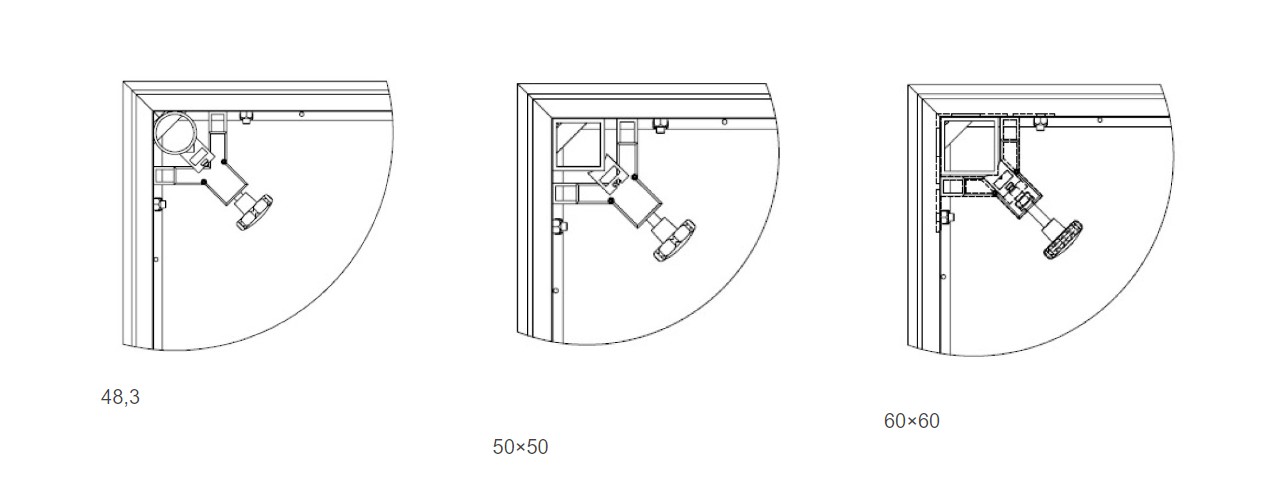

UNIVERSAL LEG CORNER
Main systems on the market provide legs 48,3 round, 50×50 square, 60×60 square. Usually to fit the leg corner you need to exchange to the pressure cube inside the corner.
In addition the pressure cube is really tiny that’s why all force is going only to the longer screw
Our new pressure cube is universal for above legs 50x50sq, 60×60 sq, and 48,3 round. There is no need to exchange anything!
To achieve this we have extended our corner. No matter what type of the leg we will use the pressure cube is always staying inside of the corner profile to give max stability.
